Phillips Instruments
Phillips Instruments

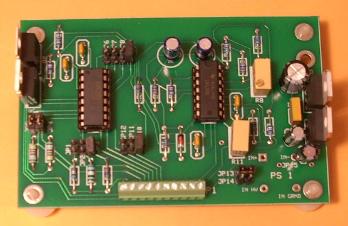

INA125BB Instrumentation Amplifier

  • On Board Excitation, 1.25,2.5,5,10 V, Jumper Selectable
  • INA 125 Burr Brown Instrumentation Amplifier IC
  • Jumper Selectable Gain, 10, 100 ,1000
  • 4 Hz Low Pass -40db Butterworth Filter
  • Offset and Gain , Full Range Offset, 2-10 Gain
  • Use 1 function at a time or all three in cascade
  • Requires +/- 12 VDC
  • 1 Year Limited Warranty
  • New, Fully Assembled and Tested Module
  • Manual Included
ONLY $29.95 Each!
ONLY $29.95 Each!
              PSBP12

  • Bipolar Power Supply  +/- 12VDC
  • 1 Amp Output Current Maximum
  • Use to Power the INA125BB
  • 115 VAC input power
  • Standard Banana Plug Connectors
  • Power Switch
  • Power On LED Indicator
  • 1 Year Limited Warranty
  • New, Fully Assembled and Tested Module
  • Manual Included
  • Output Voltage can be adjusted Internally
ONLY $19.95 Each!
            DCInd

  • Bipolar Voltage Indicator
  • Resistor Programmable Input Voltage Range
  • Use to Display the INA125BB Output
  • 9 VDC Battery Operated
  • Standard BNC Input Connector
  • Power Switch
  • 1 Year Limited Warranty
  • New, Fully Assembled and Tested Module
  • Manual Included
ONLY $29.95 Each!
 INA125BB-BP Battery-Powered
Instrumentation Amplifier

  • On Board Excitation, 1.25,2.5,5 V, Jumper Selectable
  • INA 125 Burr Brown Instrumentation Amplifier IC
  • Jumper Selectable Gain, 10, 100 ,1000
  • Optional Low Pass -40db Butterworth Filter
  • Optional Offset and Gain , Full Range Offset, 2-10 Gain
  • Use 1 function at a time or all three in cascade
  • Requires Two 9V Batteries
  • 1 Year Limited Warranty
  • New, Fully Assembled and Tested Module
  • Manual Included
IA125BB
